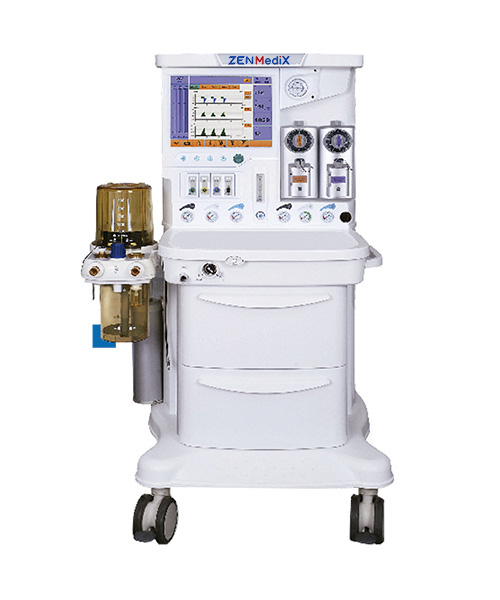

Anesthesia Workstation HYPNOSIS III

Model: HYPNOSIS III

Technical Specifications:

Physical Specifications
Dimensions:	70*85*140cm
Casters:	Front wheels with lock
Screen:	15-inch LCD
Working Specifications
Power	AC 100V-240V, 50HZ+2%
Pipeline Supply
Gas configuration	O2, N2O, Air
Pipeline input range	280-600kPa
Battery Power
Run-time	Up to 2 hrs
Pre-setting Functions
Language	English
Calibration	Automatic
Applications
Patient range	Audit/ Pediatric



Features:

Display

• 15-inch touch screen with no dead space.
• NEW interface design with user friendly layout and colour assortment.
• Day/Night display mode brings a better visual perception to users. Night mode suitable for dark environment.
• Display a full range of ventilation modes including VCV, PCV, SIMV, PSV. Also displays pressure, flow rate, volume and CO2 waveform in same interface.
• Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
• Electronic flowmeter (mechanical flowmeter also applied for safety issue).
• Typical display for Zoom in/out, comparison, freeze.
• Show last 72hrs trends.
• Up to 3000 logs.



Integrated Breathing Circuit

• Integrated breathing circuit with APL valve, excellent

tightness and easy to use.

• Low essential resistance, good mechanical compliance.
• Replacing drive bellow is not required when operating pediatric anesthesia.
• Drain cup design ensure no water trap in the breathing circuit.
• Built-in design duo flow sensor (no maintenance required).
• 2 L Large volume of CO2 canister.
• Autoclave 134°C.



High-precision Vaporizer

• New vaporizer can be used for large flow anesthesia (15L/Min).
• Apply automatic compensation function for temperature, pressure and flow.
• Apply Interlock Selectable.
• Four types: Isoflurane, Enflurane, Halothane, Sevoflurane.



Module plugs in design

• Plug in design available for monitoring SPO2,

CO2, FiO2 and 5 AA (anesthetic gases module).



Yoke system

• Up to 3 back up cylinders with A-type 11L size.



Monitoring

• Comprehensive monitoring capabilities include VT, minute volume range, airway pressure, I: E range, lung compliance, plateau, O2 concentration.



ACGO

• International standard design. (Diameter:22mm).
• Convenient for patients’ oxygen inhalation and postoperative recovery.
• To connect with T circuit or bain circuit for open -operation.



AGSS

• Made by aluminum alloy. High strength, light weight, never rusts.
• Enhance the safety of the environment in which members of staff in close proximity with waste anaesthetic gases and vapors (agents) work.





Ventilator Specifications:

Modes of Ventilation
VCV	Volume Control Ventilation
SIMV	Synchronized Intermittent Mandatory Ventilation
MANUAL	Manual
SIPPV (A/C)	Synchronized Intermittent Positive Pressure Ventilation
PCV	Pressure Control Ventilation
PSV	Pressure Support Ventilation
STAND-BY	STAND-BY
Ventilator Parameter
Working type	Electronically controlled, pneumatic driven
Tidal Volume range	10-1500ml
Pressure range	5-60 cmH2O
Rispriation rate range	1-100 bpm (1-40bpm under SIMV)
I: E range	4:1-1:8
Ptrigger range	-20-20 cmH2O (based on PEEP)
Flow trigger	0-15 L
Minute volume range	>18 L/Min
SIGH range	0-5/100
System Standard
Hypoxic guard system	N2O cut-off valve, O2 concentration >25%
Safety valve	<12.5kPa
Fresh gas compensation	25-75L/min
Volume of CO2 absorber	2 L
Flow meter	E-flowmeter 0.1-15L/min O2, 0.1-15L/min N2O, 0.1-15L/min air
Vaporizer	2 Selectable, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane)
Monitoring
Display graphics	Waveforms of P-T, F-T, V-T, loops of P-V, V-F, F-P (Zoom in/out, comparison, freeze).
Types	VT, minute volume range, airway pressure, I: E range, lung compliance, plateau, O2 concentration.
Alarm Limits
Audio/Visual	No tidal volume, MV, Paw, FiO2, limitation O2, Air failure, AC power failure, Battery low
PEEP
Type	Integrated, Electronic control
Range	OFF, 3-30cmH2O
Auxiliary features
ACGO	Auxiliary Common Gas Outlet
Yoke system (Pin-index)	Support 11L cylinder, O2/N2O
AGSS	Anaesthetic Gas Scavenging Syetems(optional)
Communication Interface	Ethernet, USB, COM
