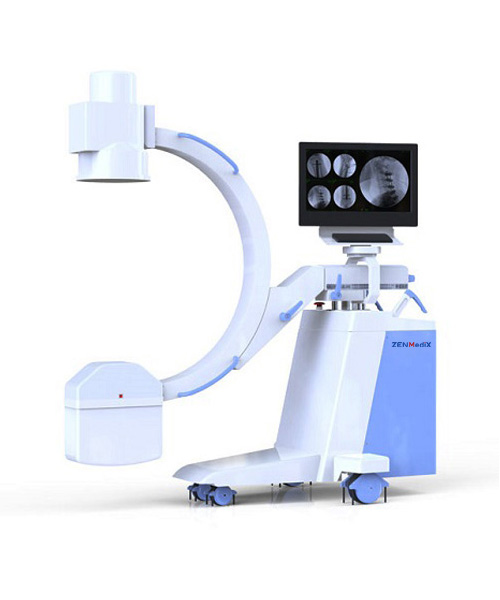

High Frequency Mobile C-Arm
ZML1106B
Usage:
Orthopedics: osteopathy, diaplasis, nailing
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
Features
- New integrated design, compact appearance, convenient operation
- High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation.
- Electric rotatable adjustable collimator
- Unique hand-held remote controller, more convenient operation
- Graphical colorfully LCD touch screen console interface, convenient operation, fashionable design
- CANON image intensifier is employed, stable and reliable in quality, high-definition image and display system
- With the perspective KV, MA automatic tracking feature, the image brightness, and definition are automatically set at optimal function.
Configuration
| No. | Item | Quantity |
| 1 | Mainframe of C-arm | 1 |
| 2 | X-ray generator and high frequency inverted power supply | 1 |
| 3 | CANON 9’’ image intensifier | 1 |
| 4 | Medical1 Mega-pixels digital CCD camera | 1 |
| 5 | CCU | 1 |
| 6 | 24” monitor | 1 |
| 7 | Imported mini groove grid | 1 |
| 8 | Electric adjustable collimator | 1 |
| 9 | Hand controller | 1 |
| 10 | Red light cross localization | 1 |
System Performance and Parameter:
| Category | Project | Content |
| Electrical Performance | High-Frequency Inverter Power Supply | Output Power: 5KW
Inverter Frequency:40kHz |
| Automatic Fluoroscopy | Tube Voltage: 40kV～120kV automatic adjustment
Tube Current:0.3mA～4mA automatic adjustment |
|
| Manual Fluoroscopy | Tube Voltage:40kV～120kV continuous adjustment
Tube Current:0.3mA～4mA continuous adjustment |
|
| Pulse Fluoroscopy | Tube Voltage:40kV～120kV continuous adjustment
Tube Current:0.3mA～30mA continuous adjustment 0.1-10 Frame/s |
|
| Photography
Tube Voltage, mA, mAs |
40 kV-120 kV
25-100mA 1-180 mAs |
|
| film holder Size | 200mm×250mm(8″×10″) or
250mm×300mm（10″×12″） |
|
| X-ray Tube | X-ray Tube Special for High Frequency | Fixed anode Dual-focus,
small focus: 0.3, large focus:1.5mm Thermal capacity: 35KJ (47KHU) |
| Video
System |
Image Intensifier | CANON 9″ Image Intensifier |
| CCD Video camera | Medical1 Mega-pixels digital CCD camera | |
| Monitor | Horizontal center resolution 1000/L,
frequency for picture refresh is 75HZ |
|
| CCU main control | High Definition progressive output mode, 8 level Noise Reduction,8 image storage, Vertical Image, Horizontal image flip, positive or negative image | |
| Structure | Directive wheel | Direction wheel 360°rotation, main wheel ±90°rotation |
| C-arm | Electric Ascending & Descending of pillar movement: 400mm
Forward and Backward Movement: 200mm Slip-on orbit: 120°(+90°～ -30°) SID: 960mm Opening: 750mm Arc depth: 640mm |
