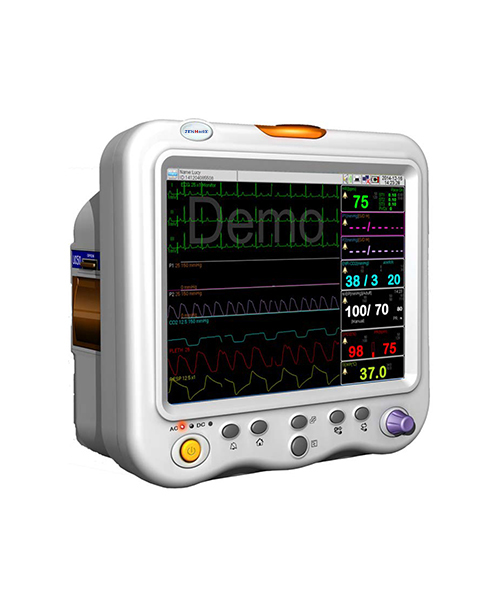

Cardiac Monitor ZM-150

• Newly advanced A10 main board with Linux OS

• Support storage of 2160 hours trend table and graph review, 2 hours waveform review (expandable to 168 hours), 2000 groups NIBP review and 2000 alarm events review

Body

• 15-inch high-brightness TFT LED

• Support display 9~13 waveforms

• Support 7(5-lead) /12 (12-lead) channel ECG waveform display simultaneously

Printer

• Built-in high-speed 50mm thermal printer (Brand: SEIKO, Japan)

Central System

• Wired or wireless connection

• Three-level acousto-optic alarm

• Sensor-off alarm

• Paper out alarm

• Support alarm review

• Support alarm pause

Linux OS

• Multi-display mode

• NIBP self-test mode

• Support medical history search by patient ID, name and mobile number

• 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection

• Drug calculation and titration table

• Multi-language display

• Online software upgrading by net/USB

– Dimension: 380mmx360mmx160mm

– Weight: 4.5 kg (excluding accessories)

Power Supply

– Voltage: AC100～240V, 50/60HZ, Power≤60W

Display

– 15″ color TFT LED

– Resolution: 1024×768 pixels

Battery (Pluggable)

– Type: Rechargeable lithium battery 14.8V/2200mAh

– Charge Cycle: ≥500 times

– Working time: 2 hours

Alarm

– Level: Low, medium and high, message

– Indication: Auditory and visual

– Alarm volume adjustable

– Alarm pause time: 1min, 2min

– Parameter alarm type: Latch/ Unlatch

Input Device

– Standard: Knob /Keypress

System Output & Extensible Interface

– Ethernet Network: standard RJ45 socket *

– USB Port: 1pc

Operating Environment

– Temperature: 5 ~ 40 ℃

– Humidity: 15% ~ 90% (non-condensing)

– Atmosphere pressure: 86 KPa ~ 110 Kpa

Transportation and Storage

– Temperature: -20～50 ℃

– Humidity: 10%～90% (non-condensing)

– Atmosphere pressure: 86 KPa ~ 110 Kpa

Safety

– IEC60601-1 Approved, CE marking according to MDD93/42/EEC

– With reference to RoHS Directive 2011/65/EU recasting

Trend & Reviewing

– Trend: 2160 hours

– ARR events: 128 groups of ARR events and associated waveform

– NIBP measurement reviewing: 2000 groups

– Waveform review: 2 hours (expandable to 168 hours)

– Alarm event: 2000 groups of parameter alarms events and associated parameter

Respiration

– Method: Impedance between RA-LL, RA-LA

– Gain: ×0.25, ×0.50, ×1, ×2, ×4

– Respiration Rate: Adult 0 ~ 120BrPM Neonatal 0 ~ 150BrPM

– Sweep speed: 6.25 mm/s, 12.5 mm/s, 5mm/s

– Resolution: 1 BrPM

– Accuracy:

±2BrPM or ±2% whichever is greater (7~150BrPM) Unspecified (0%~ 6BrPM)

– Apnea Alarm: 10 ~ 40 s

Temperature

– Technique: Thermistor probe (2.25K)

– Channel: Dual-channel, provide T1; T2; ΔT

– Measuring and Alarm Range:

0.0 ℃~ 50 ℃ (32℉~ 122℉)

– Unit: Celsius (℃), Fahrenheit ( ℉)

– Resolution: 0.1℃or 1℉

– Accuracy:

no sensor ± 0.1℃(25℃ – 45℃) ± 0.2℃(other)

include sensor ± 0.2℃（32℃ – 42℃）± 0.3℃（other）

– Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR, AVL, AVF, V

– Protection: Breakdown Voltage 4000VAC 50/60Hz;

Defibrillator proof

– Gain: 2.5mm/mV(×0.25), 5.0mm/mV(×0.5), 10mm/mV

(×1), 20mm/mV (×2), 40 mm/ mV (×4), Auto

– Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s

– ECG signal range: ±5 mV p-p

– Accuracy: ±1bpm/ ±1%, whichever is greater

– Resolution: 1 bpm

– Leakage Current < 10 μA

– Baseline Recovery:

≤ 3s after defibrillation

– Bandwidth: Surgery 1 ~ 20 Hz

Monitor 0.5 ~ 40 Hz

Diagnostic 0.05 ~ 130 Hz

– Indication of Electrode Separation: Every electrode

(exclusive of RL)

Heart Rate

– Measure range: Adult: 15 ~ 300 bpm Neo/Ped 15 ~ 350 bpm

– Resolution: 1 bpm

– Accuracy: ± 1% or ± 1bpm, whichever is greater

ST Measurement

– Range: -2.0 ~ +2.0 mV

– Accuracy: -0.8mV～+0.8mV: ±0.02mV or ±10%,

whichever is greater, other range: unspecified

– Resolution: 0.01mV

SpO2

– Measurement Range: 0 ~ 100 %

– Resolution: 1 %

– Response Modes: Low, Medium, High

– Accuracy: ±2% (70% ~ 100%)

Unspecified (0% ~ 69%)

– Support Pitch tone and multi-level volume

– User-selectable waveform speed: 6.25, 12.5, 25, 50 mm/s

Pulse Rate

– Measuring and Alarm Range: 20~250bpm

– Accuracy: ±3 bpm

– Resolution: 1bpm

NIBP

– Method: Oscillometric

– Measure mode: Manual, Auto, STAT

– Measure Interval in AUTO Mode 1~480 min

– STAT mode cycle time: Keep 5 minutes, at 5 seconds

interval

– Measure and Alarm Range:

Adult:    SYS:          40 ~ 280 mmHg

DIA:           10 ~ 220 mmHg

MEAN:       20 ~ 240 mmHg

Pediatric:    SYS:         40 ~ 220 mmHg

DIA:          10 ~ 160 mmHg

MEAN:      20 ~ 170 mmHg

Neonate:   SYS:           30 ~ 135 mmHg

DIA:           10 ~ 110 mmHg

MEAN:       20 ~ 110 mmHg

– Static pressure accuracy: ±3mmHg

– Resolution: 1mmHg

– Accuracy: Maximum Mean error ±5mmHg

Maximum Standard deviation ≤8mmHg

– Over pressure

– Measure method: Non-dispersive infrared (NDIR)

– Measure Range: 0 ~19.7% (0 ~ 150 mmHg)

0 ~ 20 kPa

– Resolution: 0.1 mmHg

– CO2 Accuracy:

0 ~ 40 mmHg, ±2 mmHg

41 ~ 70 mmHg, ±5% of reading

71 ~ 100 mmHg, ±8% of reading

101~ 150 mmHg, ±10% of reading

at 760 mmHg, ambient temperature of 25℃)

– Respiratory Rate: Range: 3 ~150 BrPM

Cardiac Output

– Measuring Method: Right heart thermodilution

– Unit: ℃/ F

– C.O. range: 0.1 l/min – 20.0 l/min

– C.O. accuracy: ±0.2 l/min or ±5%, whichever is greater

– Blood temperature range: 27℃- 43℃(80.6 F – 109.4 F)

– Blood temperature accuracy: ±0.1 ℃

– Injectate temperature: 0℃- 27℃(32 F – 80.6 F)

– Alarm delay: <10s

IBP

– Max Channel: 2

– Measurement way: Thermal resistance way

– Press Sensor: Sensitivity 5 uV/V/mmHg, ±2%

Impedance 300 to 3000Ω

– Resolution: 1 mmHg

– Unit: mmKg, kPa, cmH2O

– Transducer sites:

Arterial Pressure (ART)

Pulmonary Arterial (PA)

Left Arterial (LAP)

Right Arterial (RAP)

Central Venous Pressure (CVP)

Intracranial Pressure (ICP)

P1/ P2

– Measuring and alarm range:

ART                                   0 ~ +350mmHg

PA                                   -10 ~ +120 mmHg

CVP/ RAP/ LAP/ ICP       -10 ~ +40 mmHg

P1/ P2                              -50 ~ +350mmHg

– Accuracy:

Static: ±1mmHg or ±2%, whichever is greater

(exclusive of transducer)

±4mmHg or ±4%, whichever is greater

(inclusive of transducer)

Dynamic: ±4mmHg or ±4%, whichever is greate
