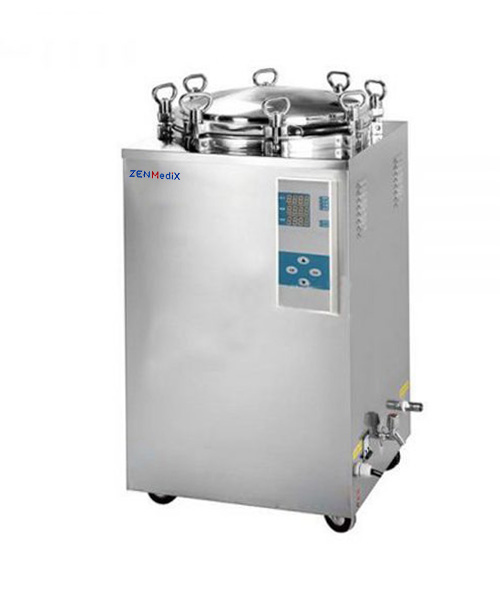

VSAS-35LD Vertical Pressure Steam Sterilizer
Characteristics
- Fully stainless steel structure.
- LED display of working status, touch type key.
- Auto discharge the cool air, and steam discharging automatically after sterilization.
- Automatically shut off with beep reminding after sterilization.
- Easy to operate, safe and reliable.
- With two stainless steel sterilizing baskets.
Technical Data
| Model | VSAS-35LD | VSAS-50LD | VSAS-75LD | VSAS-100LD | VSAS-120LD | VSAS-150LD | |||||
| Technical Data | |||||||||||
| Chamber volume | 35L
φ318×450mm |
50L
φ340×550mm |
75L
φ400×600mm |
100L
φ440×650mm |
120L
φ480×660mm |
150L
φ510×740mm |
|||||
| Working pressure | 0.22Mpa | ||||||||||
| Working temperature | 134℃ | ||||||||||
| Max.working pressure | 0.23Mpa | ||||||||||
| Heat average | ≤±1℃ | ||||||||||
| Timer range | 0-99min/0-99hour59min | ||||||||||
| Temperature adjust range | 105-134℃ | ||||||||||
| Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 7KW/AC220V 50HZ | |||||||
| Overall dimension
(mm） |
480×460×850 | 520×520×980 | 560×560×980 | 590×590×1080 | 600×640×1140 | 670×690×1130 | |||||
| Transport dimension
（mm） |
570×550×970 | 590×590×1110 | 650×630×1150 | 680×650×1220 | 730×730×1270 | 760×760×1270 | |||||
| G.W/N.W | 56Kg/42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg | 125Kg/100Kg | 135Kg/110Kg | |||||
Use
The vertical pressure steam sterilizers are assembled with heating system, microcomputer-controlled system, overheat and overpressure protection system, which are reliable for the sterilizing effects, convenience of operation and energy conservation. They are ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media, etc.
