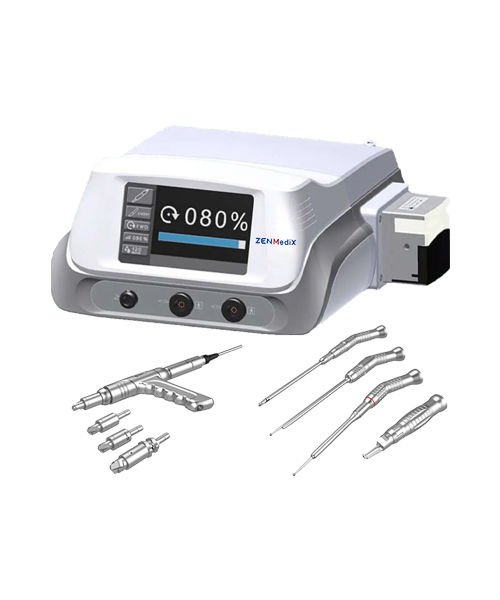

Advance Drill Machine Set ZM-720ND

(Touch screen, including 1 integrated pump)

• 7-inch touch screen
• Auto-diagnosis & self-protection
• Auto-identification of accessories
• 2 motor connectors
• Dimension: 315 mm×308 mm×171 mm.

• IPX8 water proof
• Cable length >= 3 m
• Dimension: 202 mm×215 mm×55 mm
• Stepless speed adjustment & function switch.

     Item No:ZM-07-1120

• Brushless DC micromotor
• Automatic air-cooling
• Max. speed: 40,000 rpm, Max. power: 150 W
• Cable Length: 3 m, Body Φ: 23.5 mm
• Steam autoclavable.

     Item No:ZM-07-1121

• Compatible with Micromotor (Item No:ZM-07-1120)
• Max. speed: 1,500 rpm
• Body Φ: 30 mm, L: 132 mm
• Weight: 0.45 Kg.

     Item No:ZM-07-1122

• Ф: 6 mm, 9 mm, 12 mm
• Auto-stop
• Interface for quick replacement.

     Item No:ZM-07-1123

• Compatible with Micromotor (Item No:ZM-07-1120)
• Max. speed: 40,000 rpm
• Body Φ: 20 mm, L: 126 mm
• Weight: 0.15 Kg.

     Item No:ZM-07-1124

• Compatible with Craniotome Handpiece (Item No:ZM-07-1123)
• Fixed.

     Item No:ZM-07-1125

• Straight 4-bladed shape
• Tip Φ: 1.6 mm
• For skull gap Φ: 1.6-2.34 mm
• Min. radius: 5 mm.

     Item No:ZM-07-1126

• Compatible with Reusable Cutter (Item No:ZM-07-1125)
• Rotatable.

     Item No:ZM-07-1127

• Brushless DC micromotor
• Automatic air-cooling
• Max. speed: 40,000 rpm, Max. power: 100 W
• Cable Length: 3 m, Body Φ: 20 mm
• Steam autoclavable

     Item No:ZM-07-1128

• Max. speed: 80,000 rpm
• 21°angled shape.

     Item No:ZM-07-1129

• Max. speed: 40,000 rpm
• Straight shape

Compatible with High-speed Handpiece

• Angled, Item No:ZM-07-1128
• Straight, Item No:ZM-07-1129

     Item No:ZM-07-1130

• Φ: 1.0 mm, L: 70 mm, shaft Φ: 2.38 mm

     Item No:ZM-07-1131

• Φ: 2.0 mm, L: 70 mm, shaft Φ: 2.38 mm.

     Item No:ZM-07-1132

• Φ: 3.0 mm, L: 70 mm, shaft Φ: 2.38 mm.

     Item No:ZM-07-1133

• Φ: 2.0 mm, L: 70 mm, shaft Φ: 2.38 mm.

     Item No:ZM-07-1134

• Φ: 3.0 mm, L: 70 mm, shaft Φ: 2.38 mm.

     Item No:ZM-07-1135

• Φ: 5.0 mm, L: 70 mm, shaft Φ: 2.38 mm.

• Designed for Neuro & Spine Surgery
